High-voltage transformer

In order to ensure product performance, the high-voltage transformer produced by our company has been designed and tested for transformer core, coil, body, lead wire, oil tank and other parts, and has passed the short-circuit capacity and conventional type test of the National Transformer Quality Supervision and Inspection Center! This product has the characteristics of stability, economy, reliability and environmental protection, and is suitable for power plants, substations and large industrial and mining enterprises, petrochemical enterprises.

Power Capacity: 25-2500KVA

Voltage Level: 10KV,1IKV,13.8KV,15KV,17.5KV,20KV,22KV,24KV,30KV,33KV,35KV,36KV...... 132kv and Others as customers requirement

Type of Voltage Regulation: Off-circuit or On-load

Tapping Range: ±5 %±2x2.5 %±4x2.5 %

Frequency: 50Hz or 60Hz

Phases: Three or single

Connection Symbol: Dyn11,Yyn0 ( or as requested)

Short-circuit lmpedance: Standard lmpedance

Altitude is not exceeding 1000m,ambient temperature not exceeding 400C

If it can't meet such conditions,we will modulate parameters in accordance with standard.

Patent certificate

Our company's products have passed IS09001, 14001 and CE certificates, and we can alsoprovide relevant certificates that meet customer national requirements.

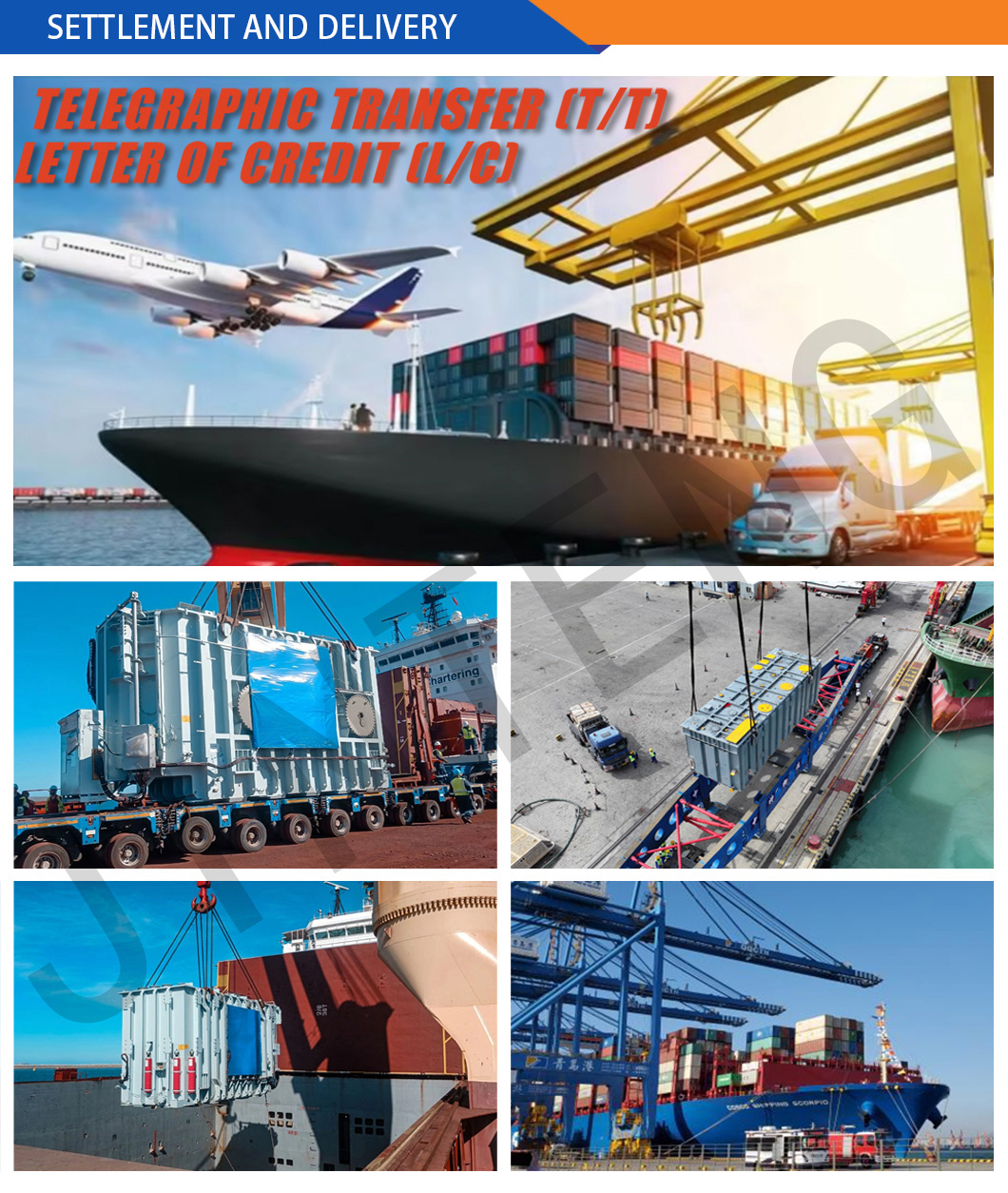

Delivery capability

Our company will prepare a delivery schedule for your project, and we have good logisticscapabilities to provide you withdomestic and international logistics

delivery capabilities in China.

Xuzhou Jinteng Intelligent Electrical Technology Co., Ltd. is headquartered in Xuzhou City, Jiangsu Province, China. It is a technology-driven enterprise engaged in the research and development, production and sales of power transmission and distribution equipment. The company adheres to the concept of "quality-based, innovation-oriented" and focuses on providing efficient and reliable power solutions to global customers. Its products cover transformers, substations, switchgear, ring network cabinets, etc., which are widely used in in

Main Technical Parameter (can customize it according to your techncial data)
Rated Capacity(KVA)	Voltage Combination			Vector Group	No-load Loss (KW)	Load Loss (KW)	No-load Curent%	Short-circuitimpedance	Weight (kG)
	High Voltage(KA)	High Voltage Tapping Range	Low Voltage(KA)						Oil Weight	Gross Weight
30	20-10	±5×2.5% ±2×2.5%	0.4	Dyn11	0.09	0.66	2.1	5.5	180	420
50					0.13	0.96	2		150	495
63					0.15	1.145	1.9		170	560
80					0.18	1.37	1.8		190	635
100					0.20	1.65	1.6		215	710
125					0.24	1.98	1.5		250	840
160					0.29	2.42	1.4		285	945
200					0.33	2.86	1.3		340	1125
250					0.40	3.35	1.2		390	1295
315					0.48	4.01	1.1		445	1475
400					0.57	4.73	1.0		515	1712
500					0.68	5.66	1.0	6.0	460	1995
630					0.81	6.82	0.9		565	2450
800					0.98	8.25	0.8		635	2765
1000					1.15	11.33	0.7		840	3650
1250					1.35	13.20	0.7		970	4220
1600					1.63	15.95	0.6		1105	4800
2000					1.95	19.14	0.6		1205	5240
2500					2.34	22.22	0.5		1300	5650

1. Are you a trading company or manufacturer ?

We are a professional factory with 10 years experience in the field of High and low Voltage switchgears.Substation,transformers,cable distribution box and various electrical equipment, such as vacuum circuitbreakerload break switch etc.Our factory is the excellent supplier of State Grid Corporation od China .

2. Do you accept customized serveice ?

We ofer ODM/OEM service , can print your logo on product . our professional technical and quotation teamcan provice a satisfied project according to your drawing and parameters

3. What is your MoQ?

Our MOQ is 1 piece.

4. How long is your delivery lead time ?

lt depends on your product requirement and quantity . Generally , 5-10 working days is avaliable

5. How do you solve quality problems?

Please porvide detalled photoes of guality problems. our technical and quality testing deparment will analyse.we will makea satisfed soluton within 2 davs

6. What is your payment terms ?

Pay 30% deposit by wire transfer in advance, 70% before shipment, and the balance after receiving the goods, or you can use letter of credit.

7. What is your warranty terms?

We provide 24 months warranty terms.

8. Can we visit our company?

Yes, of course, you are welcome to visit our company.
