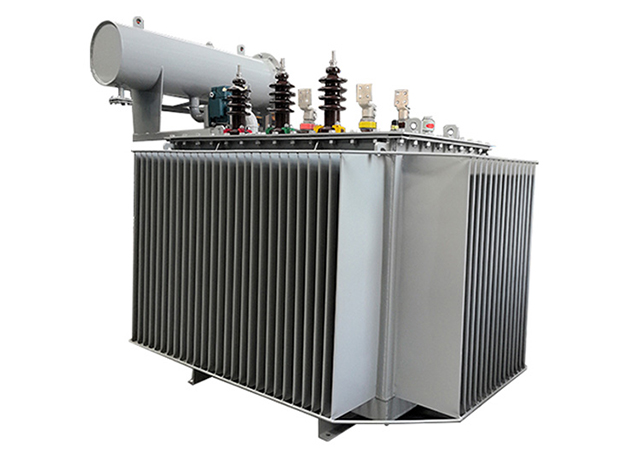

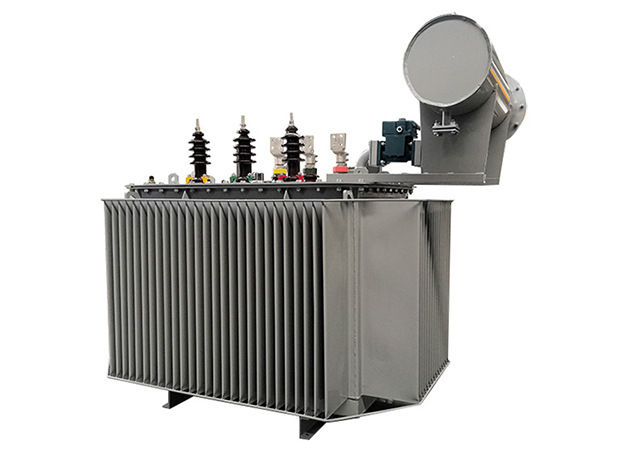

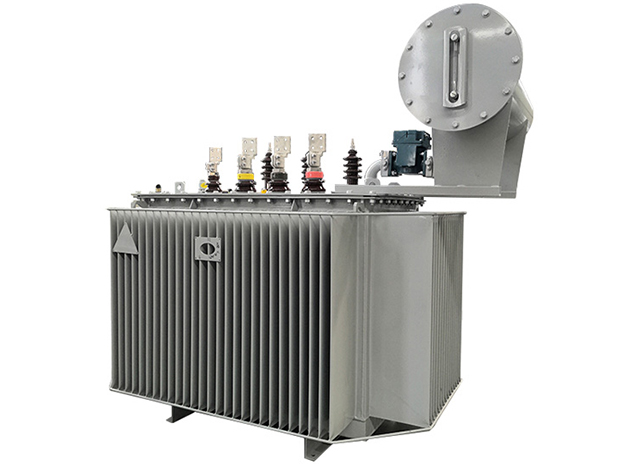

Oil-Immersed Series Transformer

The fully sealed oil-immersed power transformer, developed by Jinteng Electric, delivers exceptional performance with low loss, low noise, and high efficiency. Designed for energy-saving benefits and reduced environmental impact, it ensures reliable operation and minimal maintenance requirements. Its advanced sealed construction prevents air exposure, protecting the oil and insulation from degradation, thereby enhancing durability and performance.

Power Capacity: 30-5000KVA

Voltage Level: 10KV,1IKV,13.8KV,15KV,17.5KV,20KV,22KV,24KV,30KV,33KV,35KV,36KV...... 132kv and Others as customers requirement

Type of Voltage Regulation: Off-circuit or On-load

Tapping Range: ±5 %±2x2.5 %±4x2.5 %

Frequency: 50Hz or 60Hz

Phases: Three or single

Connection Symbol: Dyn11,Yyn0 ( or as requested)

Short-circuit lmpedance: Standard lmpedance

Altitude is not exceeding 1000m,ambient temperature not exceeding 400C

If it can't meet such conditions,we will modulate parameters in accordance with standard.

TRANSFORMER BODY

Transformer shell can withstand high temperature, good overloadability, impact resistance, and insulation. Reasonable arrangement of heat sink can dissipate heat faster.

TERMINAL

High quality terminal, with wiring instructions, easy to install.

PURE COPPER MATERIAL

Enhance mechanical properties, mechanical strength, dynamic stability, and thermal stability.

BUCHHOLZ RELAY

Buchholz relay (also called gas relay) is a protective device used in transformers. It is installed in the pipeline between the oil storage cabinet and the oil tank of the transformer. When the internal fault of the transformer causes the oil to decompose and produce gas or causes oil flow surge, the contacts of the gas relay will be activated, the specified control circuit will be connected, and a signal alarm will be issued in time or the protection element will be activated to automaticall

Main Technical Parameter (can customize it according to your techncial data)
Rated Capacity(KVA)	Voltage Combination			Vector Group	No-load Loss (KW)	Load Loss (KW)	No-load Curent%	Short-circuitimpedance	Weight (kG)
	High Voltage(KA)	High Voltage Tapping Range	Low Voltage(KA)						Oil Weight	Gross Weight
30	6 6.3 10 10.5 11	±5×2.5% ±2×2.5%	0.4	Yyn0 Dyn11	0.71	0.19	1.6	4	250	320
50					1	0.27	1.4		370	460
63					1.38	0.37	1.2		460	550
80					1.57	0.4	1.1		490	580
100					1.85	0.47	1.0		570	680
125					2.13	0.54	1.0		640	750
160					2.52	0.62	0.9		775	890
200					2.75	0.72	0.8		895	1030
250					3.47	0.88	0.8		1100	1250
315					3.99	0.98	0.7		1200	1350
400					4.88	1.16	0.7		1460	1610
500					5.87	1.34	0.6	6	1680	1840
630					5.96	1.3	0.6		1800	1980
800					6.95	1.52	0.5		2130	2310
1000					8.13	1.77	0.45		2520	2720
1250					9.69	2.09	0.45		3075	3300
1600					11.73	2.45	0.45		3670	3900
2000					14.45	3.32	0.4		4420	4670
2500					17.17	4	0.4		5310	5580

1. Are you a trading company or manufacturer ?

We are a professional factory with 10 years experience in the field of High and low Voltage switchgears.Substation,transformers,cable distribution box and various electrical equipment, such as vacuum circuitbreakerload break switch etc.Our factory is the excellent supplier of State Grid Corporation od China .

2. Do you accept customized serveice ?

We ofer ODM/OEM service , can print your logo on product . our professional technical and quotation teamcan provice a satisfied project according to your drawing and parameters

3. What is your MoQ?

Our MOQ is 1 piece.

4. How long is your delivery lead time ?

lt depends on your product requirement and quantity . Generally , 5-10 working days is avaliable

5. How do you solve quality problems?

Please porvide detalled photoes of guality problems. our technical and quality testing deparment will analyse.we will makea satisfed soluton within 2 davs

6. What is your payment terms ?

Pay 30% deposit by wire transfer in advance, 70% before shipment, and the balance after receiving the goods, or you can use letter of credit.

7. What is your warranty terms?

We provide 24 months warranty terms.

8. Can we visit our company?

Yes, of course, you are welcome to visit our company.
